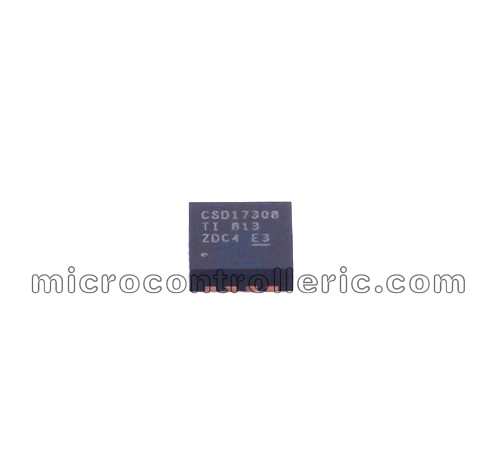

Name: CSD17308Q3 MOSFET 30V NCh NexFET Pwr 50A
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : CSD17308Q3

MOQ : 2500

Price : Negotiabie

Payment Terms : T/T

Packaging Details : Carton packging

Transistor Polarity : N-Channel

Number of Channels : 1 Channel

Vds - Drain-Source Breakdown Voltage : 30 V

Id - Continuous Drain Current : 50 A

Rds On - Drain-Source Resistance : 10.3 mOhms

Contact Now

CSD17308Q3 MOSFET 30V NCh NexFET Pwr MOSFET

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Texas Instruments
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	SMD/SMT
Package / Case:	VSON-CLIP-8
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	30 V
Id - Continuous Drain Current:	50 A
Rds On - Drain-Source Resistance:	10.3 mOhms
Vgs - Gate-Source Voltage:	- 8 V, + 8 V
Vgs th - Gate-Source Threshold Voltage:	900 mV
Qg - Gate Charge:	3.9 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	28 W
Channel Mode:	Enhancement
Tradename:	NexFET
Series:	CSD17308Q3
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Configuration:	Single
Development Kit:	BQ500211AEVM-210
Fall Time:	2.3 ns
Height:	1 mm
Length:	3.3 mm
Product Type:	MOSFET
Rise Time:	5.7 ns
	2500
